Diamond Iron Wire Mesh Panel Cyclone Chain Link Fence

Diamond Iron Wire Mesh Panel Cyclone Fence Chain Link Fence

Chain Link Fences also called diamond mesh fences, cyclone fences.The chain link wire mesh is formed by twisting wire raw material together. There are also two kinds of edges which are folded edge and twisted edge. The raw materials can be galvanized steel wire or PVC coated steel wire. The latter one can have custom colors and the most popular one is dark green.

Chain link temporary fence is also called US temporary fence, construction fence panel. It is great for immediate use. These multi-purpose fences are easy to assemble and dismantle, and can be installed in a variety of surfaces including sand, soil, asphalt and concrete.

Specification

Material: steel pipe, low carbon steel wire, galvanized wire, PVC coated wire.

Surface treatment: electric galvanized, hot dipped galvanized, powder coated, PVC coated, etc.

Fence panel

There are two types of chain link panel:

Type 1: all sides of panel are wire laced.

Type 2: two vertical pipes are fixed on frame by flat bars and clamps.

Material: low carbon high quality iron wire /stainless steel wire

Surface treatment: electro or hot dipped galvanized / pvc coated.

Wire diameter:2.5-4.0mm(accept customized)

Characteristic: chain link fence is manufactured from high quality low carbon steel wire,steel wire need to be galvanized or pvc coated before weaving .

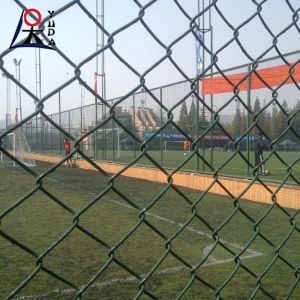

Using area: used widely in playground ,zoo ,garden ,airport ,construction as the fence or protective screen.

Package: use woven bag wrap the two sides.

PVC Coated Chian Link fence Dimension
Mesh	Wire Diameter	Width	Length
40mmx40mm	2.8mm--3.8mm	0.5m--4.0m	5m-25m
50mmx50mm	3.0mm--5.0mm	0.5m--4.0m	5m-25m
60mmx60mm	3.0mm--5.0mm	0.5m--4.0m	5m-25m
80mmx80mm	3.0mm--5.0mm	0.5m--4.0m	5m-25m
100mmx100mm	3.0mm--5.0mm	0.5m--4.0m	5m-25m

Surface treatment	Min	Max
Electro Galvanized	15g/m*m	25g/m*m
Hot dip galvanized	30/m*m	366g/m*m
PVC/PE Coated	400microns	1000microns

Chain Link Fence
Color	Dark Green, White or custom
Material	Low carbon steel wire, Stainless steel wire, Aluminum alloy wire
Surface Treatment	Electro galvanized, Hot-dipped galvanized, PVC coated
Wire Diameter	1.2 - 2.4mm,1.6mm - 4.2mm,2.0mm-5.00mm
Mesh Size	25mm,40mm,50mm,57mm,60mm,64mm,67mm,75mm,100mm
Roll Length	0.50m - 100m(or more)
Roll Width	0.5m - 5.0m
Note	Materials and specifications can be customized

Diamond Iron Wire Mesh Panel Cyclone Chain Link Fence
